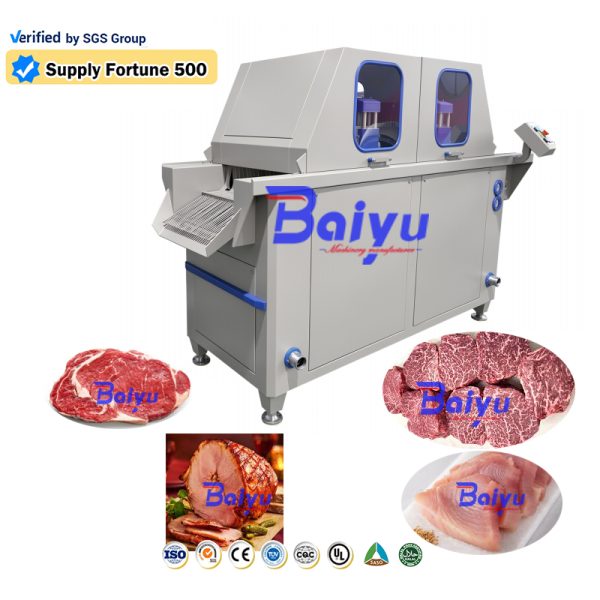

Injection Cleaning Machine
Injection Cleaning Machine
Baiyu Tenderizing machine

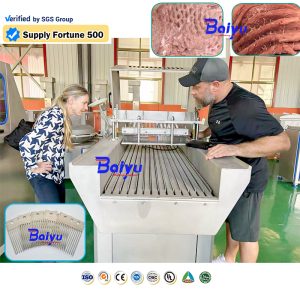

Automatic Meat Tenderizing Equipment for Central Kitchen and Food Factory Use

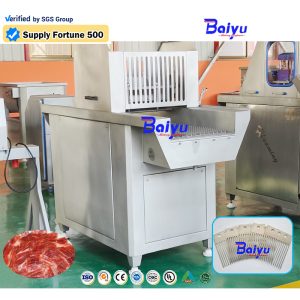

Automatic Meat Softening Machine for Beef Pork Chicken with High Output Capacity
meat tenderizer 48 blade stainless steel

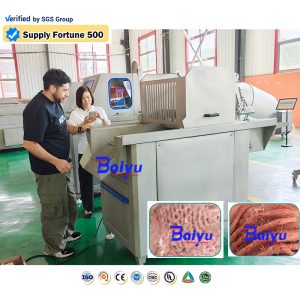

Baiyu Meat Tenderizing Machine

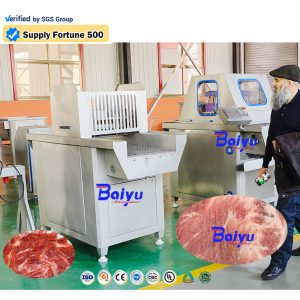

Automatic Tenderizer Machine

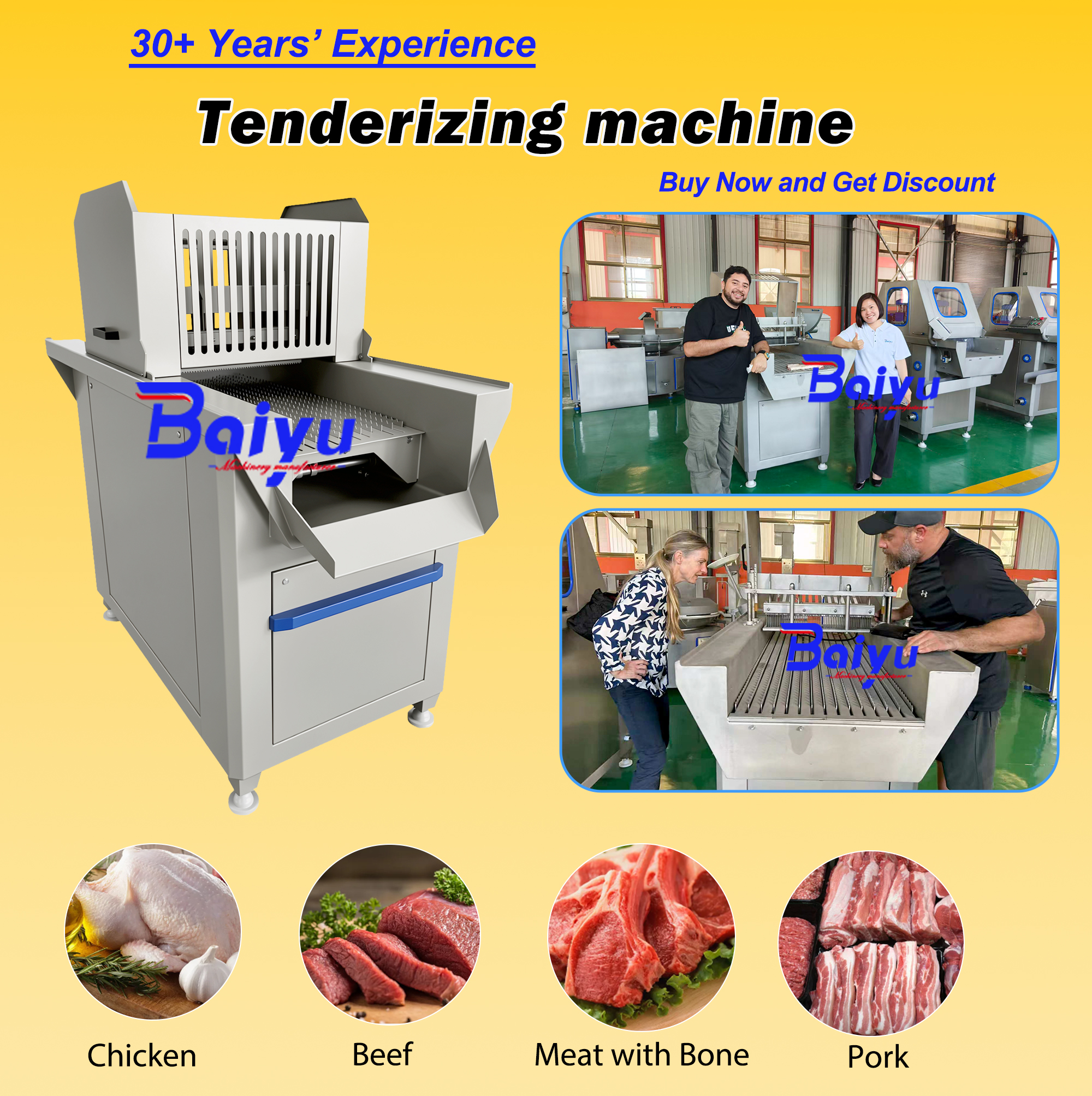

Tenderizing machine

Meat Tenderizer Machine is designed to mechanically tenderize fresh and chilled meat by using multiple stainless steel blades or needles to break muscle fibers and connective tissue without damaging the product’s appearance. This process improves meat tenderness, enhances marinade absorption, increases water retention and cooking yield, and ensures a more consistent texture. Made of food-grade SUS304 stainless steel, the machine is hygienic, easy to clean, and suitable for continuous production. It is widely used for processing beef, pork, chicken, duck, turkey, and other fresh meat products, making it an ideal solution for meat processing plants, prepared food manufacturers, and central kitchens.

Category:

Description

Tenderizing Machine Specification

Features



  • Improves meat tenderness by cutting muscle fibers and connective tissue.
  • Enhances marinade absorption, reducing marinating time and improving flavor distribution.
  • Increases cooking yield by improving water retention after tumbling or brine injection.
  • Maintains product shape while significantly improving texture.
  • Adjustable tenderizing intensity for different meat thicknesses and product requirements.
  • Food-grade SUS304 stainless steel construction for hygiene and easy cleaning.
  • High processing efficiency, suitable for continuous industrial production.
  • Compatible with automatic production lines, easily integrated with injectors, tumblers, slicers, and coating lines.

Working Principle

The meat is placed onto the conveyor belt or manually fed into the machine. As the product passes through the tenderizing chamber, multiple rotating blade shafts equipped with hundreds of sharp stainless steel knives penetrate the meat surface at a controlled depth.

These fine cuts break muscle fibers and partially separate connective tissues while preserving the product’s natural appearance. The cutting depth and pressure can be adjusted according to different meat thicknesses and processing requirements.

After tenderization, the meat becomes softer and more uniform in texture, allowing marinades, seasonings, or brine solutions to penetrate deeper and more evenly during the following marination or vacuum tumbling process.



The machine operates continuously, ensuring stable processing quality and high production efficiency.

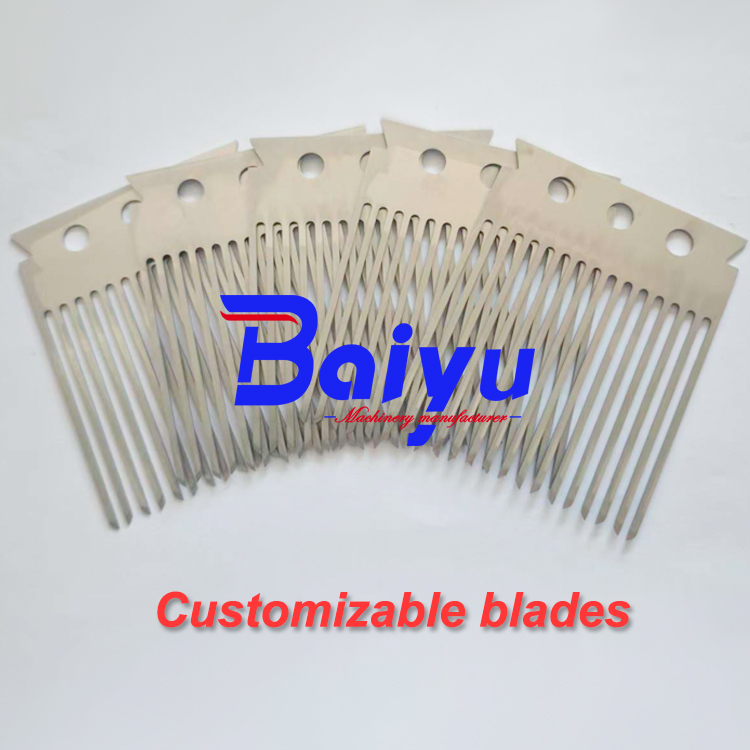

The meat tenderizer machine is equipped with a highly customizable blade system that can be designed according to different meat thicknesses, textures, and processing requirements. Blade shape, length, spacing, and density can all be adjusted to achieve the ideal tenderizing effect. For thin meat slices, shorter and high-density blades are recommended to ensure uniform and efficient tenderization, while thicker cuts such as steaks or whole muscle meat require longer blades with deeper penetration to effectively break down internal fibers and improve marination absorption.


All blades are made of food-grade high-strength stainless steel, offering excellent wear resistance, corrosion resistance, and easy cleaning performance. This customizable design allows the machine to adapt to a wide range of meat products without damaging the original meat structure. It ensures consistent product quality, improved appearance, and optimal texture, making it suitable for beef, pork, chicken, and various processed meat products in modern food processing lines.

Customer Cases

“Baiyu’s Automatic Meat Injection Machine Shines!”

Baiyu’s automatic meat injection machine is a true master at injecting flavor. It has elevated our beef cooking, ensuring each bite is packed with the perfect blend of taste. An absolute game-changer!

                        5.0 Very Satisfied

Project Site: Slovakia
Model Number:ZYZ-270
Capacity Per Hour: 1200kg
 “Baiyu’s Automatic Meat Injector Nails It!”

When it comes to precision flavor enhancement, Baiyu’s automatic meat injection machine nails it. The results are consistently flavorful, making our dishes a hit every time. Kudos to Baiyu for this culinary gem!


                        5.0 Very Satisfied

Project Site: Indonesia
Model Number::ZYZ-80
Capacity Per Hour: 260kg

” High recommended supplier”

Unlocking the secret to perfectly infused flavors is easy with Baiyu’s automatic meat injection machine. It’s become an indispensable tool in our kitchen, ensuring our dishes are a burst of deliciousness. Thank you, Baiyu!


                        5.0 Very Satisfied

Project Site: Italy
Model Number::ZYZ-180
Capacity Per Hour: 1200kg

“Effortless Flavor Infusion: Baiyu’s Meat Injector Stands Out!”

“Impressed by the flavor precision Baiyu’s meat injection machine delivers. It’s a testament to advanced culinary technology, ensuring our meats are consistently juicy and bursting with taste. Well done, Baiyu!”

                        5.0 Very Satisfied

Project Site: Sweden
Model Number:ZYZ-270
Capacity Per Hour: 1200kg

 “Baiyu’s Culinary Innovation at Its Finest!”

Baiyu’s automatic meat injection machine represents culinary innovation at its finest. It’s a revolutionary tool that has enhanced the depth of flavor in our dishes. Grateful to Baiyu for this cutting-edge addition to our kitchen!


                        5.0 Very Satisfied

Project Site: Russia
Model Number: ZB-80
Capacity Per Hour: 800kg

” Precision and Performance in Every Bite!”

Precision and performance shine through in every bite with Baiyu’s meat injection machine. It’s a reliable companion in our kitchen, ensuring that our meats are infused with flavor perfection. Thank you, Baiyu!


                        5.0 Very Satisfied

Project Site:South Korea
Model Number::ZYZ-80
Capacity Per Hour: 260kg

Paramters

ModelPower (kw)Injection pressure(map)Overall Dimension(mm)
ZYZ-5030.1-0.62000*385*1600
ZYZ-834.50.1-0.62200*1050*1700
ZYZ-11050.1-0.62200*800*1700
ZYZ-16650.1-0.62950*1050*1700
ZYZ-960170-0.43472*1223*1550
ZYZ-1380130-0.43250*1470*1550
ZYZ-2640150-0.43600*1310*1680

Other models can be customized

Production Line Integration

The meat tenderizer machine is commonly installed before seasoning or marinating equipment to maximize processing efficiency.

Typical processing line:

Fresh Meat → Tenderizer → Brine Injector → Vacuum Tumbler → Slicer / Strip Cutter / Dicer → Forming Machine → Coating Machine → Frying Line → Cooling → Packaging

For steak production:

Fresh Beef → Tenderizer → Vacuum Marinating → Portion Cutting → Packaging

For prepared meat products:



Fresh Chicken Breast → Tenderizer → Marinating → Battering → Breading → Frying → Freezing → Packaging

Application

The meat tenderizer machine is suitable for processing a wide variety of fresh and chilled meat products, including:

Beef Products

  • Beef Steak;Ribeye;Sirloin;Striploin;Beef Cubes;Beef Slices;BBQ Beef;Marinated Beef

Pork Products

  • Pork Chop;Pork Loin;Pork Steak;Pork Cutlet;BBQ Pork;Marinated Pork

Poultry Products

  • Chicken Breast;Chicken Fillet;Chicken Steak;Chicken Cutlet;Turkey Breast;Duck Breast

Other Products



  • Lamb
  • Veal
  • Rabbit Meat
  • Ready-to-cook Meat
  • Breaded Meat Products
  • Frozen Prepared Foods
  • Central Kitchen Products
  • Fast Food Meat Products
