Description
Key Specification

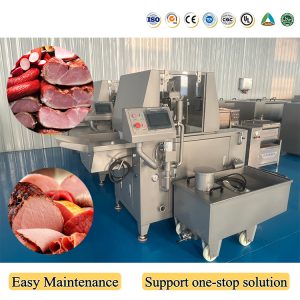

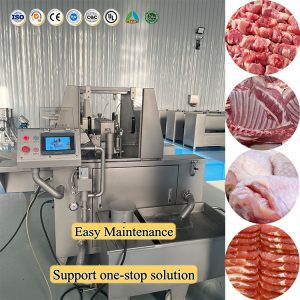

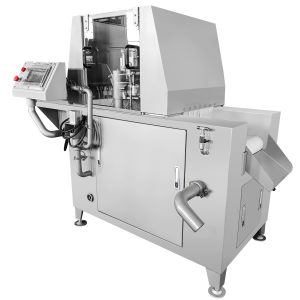

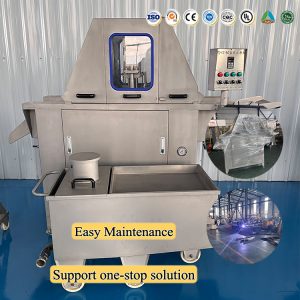

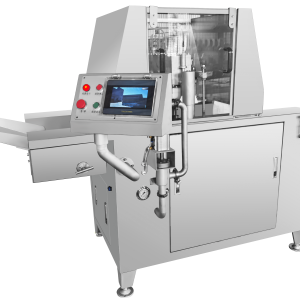

This machine is made of high-quality stainless steel, with strict design, reasonable structure, easy operation, removable transmission chain plate, clean and sanitary, easy to clean, and is essential equipment for meat processing enterprises.
Brine machine step needle box transmission device adopts frequency converter to adjust the speed. The liquid injection pump adopts a frequency converter to adjust the pump pressure.
1.Adopt European technology. The Brine injection machine including the salt water pump is made of SUS304 stainless steel. It conforms to HACCP hygiene standard.

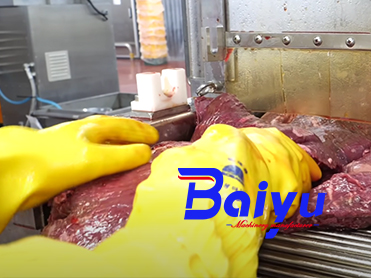

2.It can be injected with bone (with automatic protection device, when the injection needle touches a hard object, the injection needle lifts up with it and is not damaged; the injection needle can be easily adjusted and installed). The injection needle is uniquely designed and reasonably arranged, the material water can be evenly distributed in the meat block, and the injection rate is adjustable.
3.The conveyor belt can be easily pulled out for cleaning, which is in line with the humanized design concept.
4.The electrical box is split installation, which can effectively avoid moisture of electrical appliances.
5.The material water filter is equipped with four layers, so that the material water circulation process will not block the brine pump. The circulating system is equipped with pressure stabilizing accumulator to ensure stable injection pressure.
6.The conveyor belt is reasonably designed to meet the injection of small and large meat pieces.Brine injection machine
The entire machine is manufactured from high-quality SUS304/316 stainless steel, offering excellent corrosion resistance, durability, and hygiene performance. The food-contact components are designed to meet international food processing standards, ensuring safe and reliable operation in demanding production environments.
The machine integrates automatic conveying, needle injection, brine circulation, and recovery systems into one continuous process. This significantly reduces manual intervention, improves production efficiency, and ensures consistent product quality across every batch.
Equipped with a multi-needle injection system, the machine ensures uniform brine distribution throughout the product. Injection pressure, stroke, and conveyor speed can be adjusted to achieve optimal results for different products and recipes.

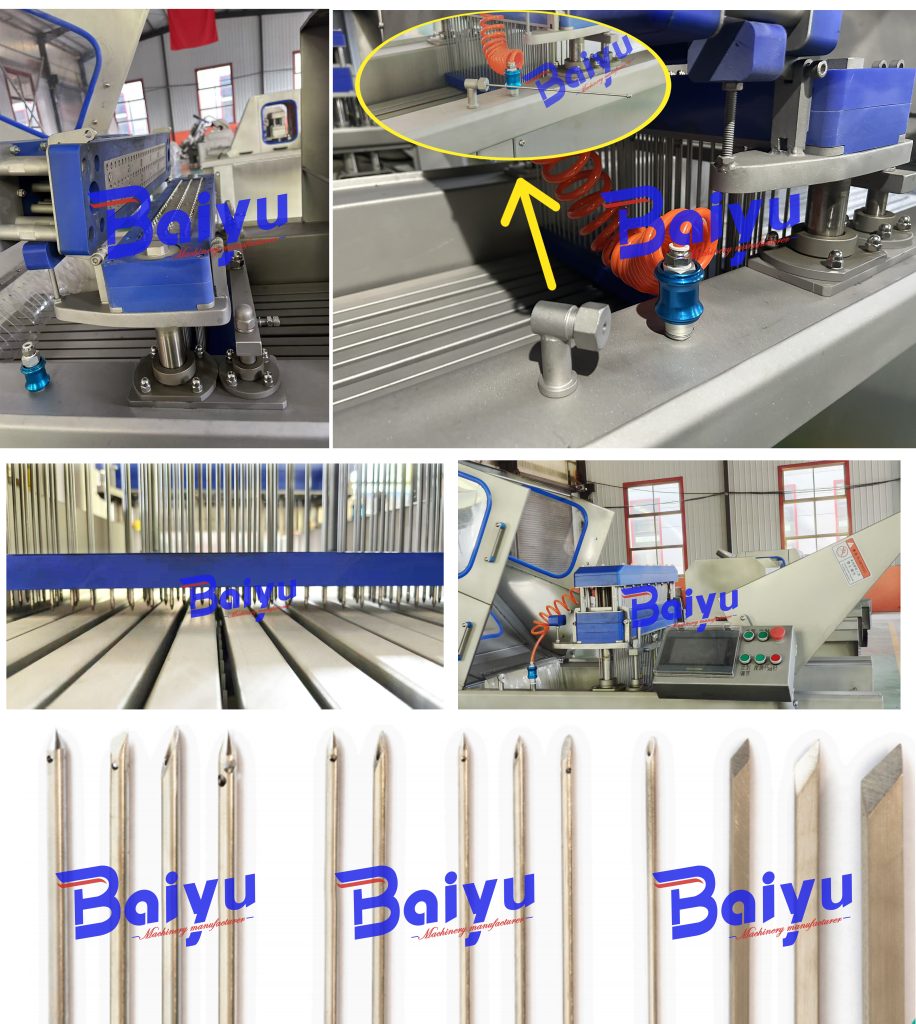

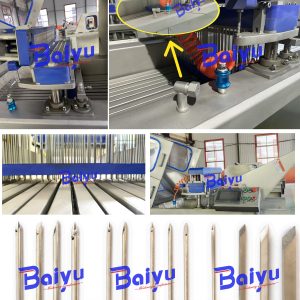

The injection needle diameter can be customized according to different product requirements, ensuring optimal injection performance for various meat and seafood materials.
Customizable Needle Hole Design
The size and shape of the needle holes are fully customizable, allowing precise control of brine flow, distribution, and penetration depth for different processing applications.
Customized Needle Length
The needle length can be specially designed based on the thickness and structure of the product, ensuring uniform injection results for both thin and thick materials.
Automatic Needle Cleaning System
The machine is equipped with an automatic needle cleaning system, which helps prevent blockage caused by seasoning particles, proteins, or residues during operation.
Quick-Release Needle Assembly
The injection needles are designed for quick and easy disassembly, making cleaning, maintenance, and replacement highly convenient and time-saving.
Reliable & Hygienic Needle System
The overall needle system is engineered for stable long-term operation, improving hygiene standards and reducing downtime in continuous food production environments.

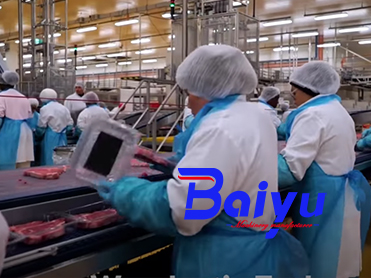

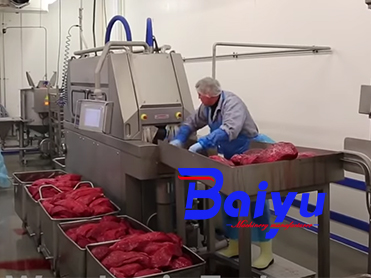

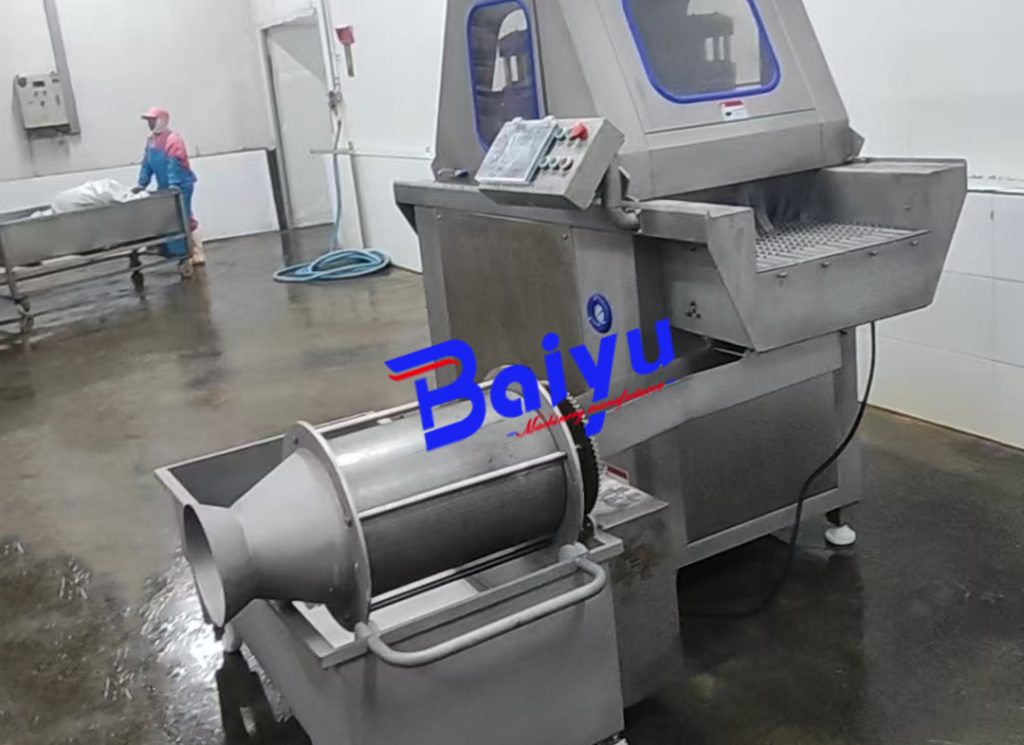

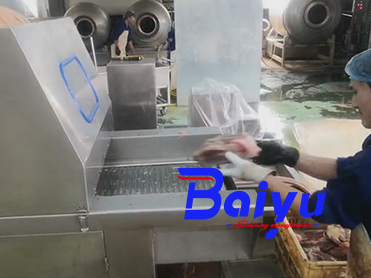

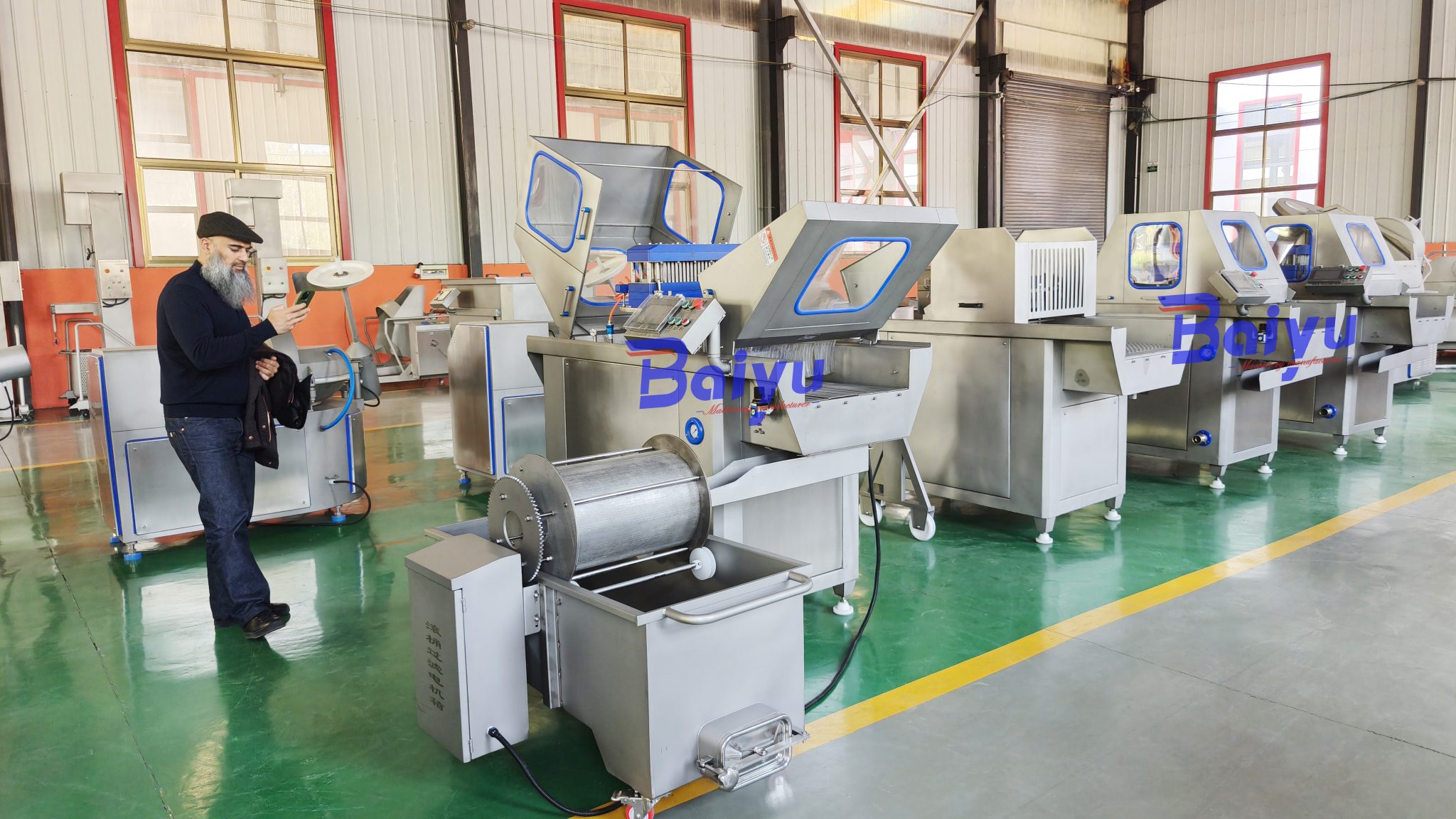

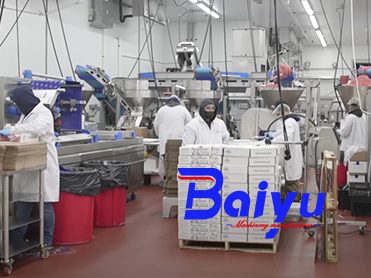

Saline Injector machine- Customer Case
With adjustable settings to cater to different meat types and processing requirements, the Baiyu Brine Injection Machine is easy to operate and provides reliable performance with minimal maintenance. Upgrade your food processing equipment with the Baiyu Brine Injection Machine and experience the same success as our satisfied customers
5.0 Very Satisfied
Project Site: Slovakia
Model Number:ZYZ-270
Capacity Per Hour: 1200kg
5.0 Very Satisfied
Project Site: Indonesia
Model Number::ZYZ-80
Capacity Per Hour: 260kg
Unlocking the secret to perfectly infused flavors is easy with Baiyu’s automatic meat injection machine. It’s become an indispensable tool in our kitchen, ensuring our dishes are a burst of deliciousness. Thank you, Baiyu!
5.0 Very Satisfied
Project Site: Italy
Model Number::ZYZ-180
Capacity Per Hour: 1200kg
“Impressed by the flavor precision Baiyu’s meat injection machine delivers. It’s a testament to advanced culinary technology, ensuring our meats are consistently juicy and bursting with taste. Well done, Baiyu!”
5.0 Very Satisfied
Project Site: Sweden
Model Number:ZYZ-270
Capacity Per Hour: 1200kg
Baiyu’s automatic meat injection machine represents culinary innovation at its finest. It’s a revolutionary tool that has enhanced the depth of flavor in our dishes. Grateful to Baiyu for this cutting-edge addition to our kitchen!
5.0 Very Satisfied
Project Site: Russia
Model Number: ZB-80
Capacity Per Hour: 800kg
Precision and performance shine through in every bite with Baiyu’s meat injection machine. It’s a reliable companion in our kitchen, ensuring that our meats are infused with flavor perfection. Thank you, Baiyu!
5.0 Very Satisfied
Project Site:South Korea
Model Number::ZYZ-80
Capacity Per Hour: 260kg
Paramters
| Model | Power (kw) | Injection pressure(map) | Overall Dimension(mm) |
|---|---|---|---|
| ZYZ-50 | 3 | 0.1-0.6 | 2000*385*1600 |
| ZYZ-83 | 4.5 | 0.1-0.6 | 2200*1050*1700 |
| ZYZ-110 | 5 | 0.1-0.6 | 2200*800*1700 |
| ZYZ-166 | 5 | 0.1-0.6 | 2950*1050*1700 |
| ZYZ-960 | 17 | 0-0.4 | 3472*1223*1550 |
| ZYZ-1380 | 13 | 0-0.4 | 3250*1470*1550 |
| ZYZ-2640 | 15 | 0-0.4 | 3600*1310*1680 |
Other models can be customized

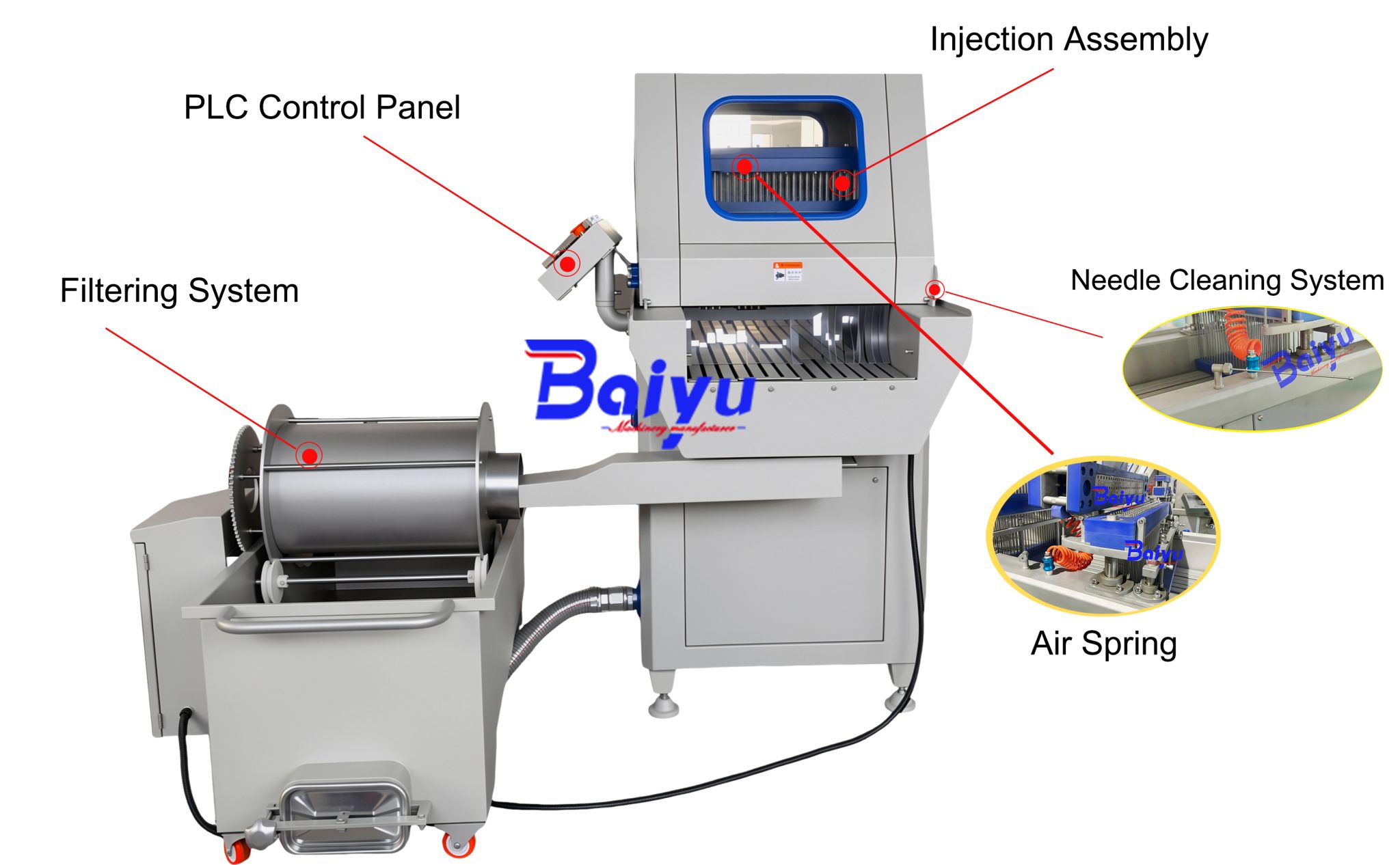

Saline injection machine sturcture

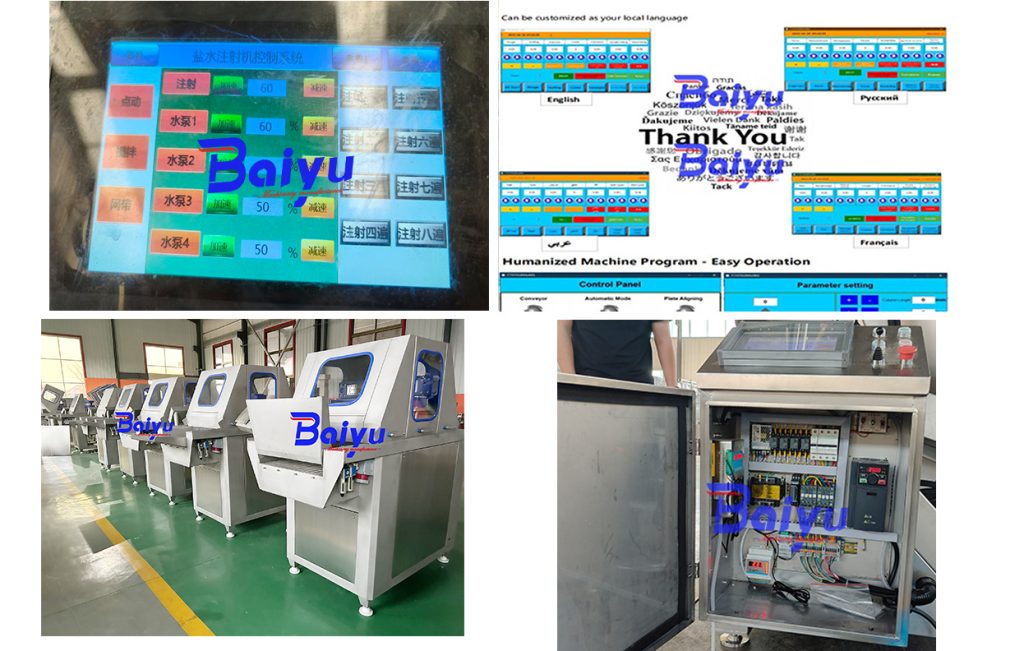

Our brine injection machine has evolved to its third generation, equipped with a new PLC system that helps customers achieve production standardization. The upgraded structure greatly improves injection efficiency and offers excellent cleaning performance, while also being easier to operate and maintain for workers.
Saline injection making process

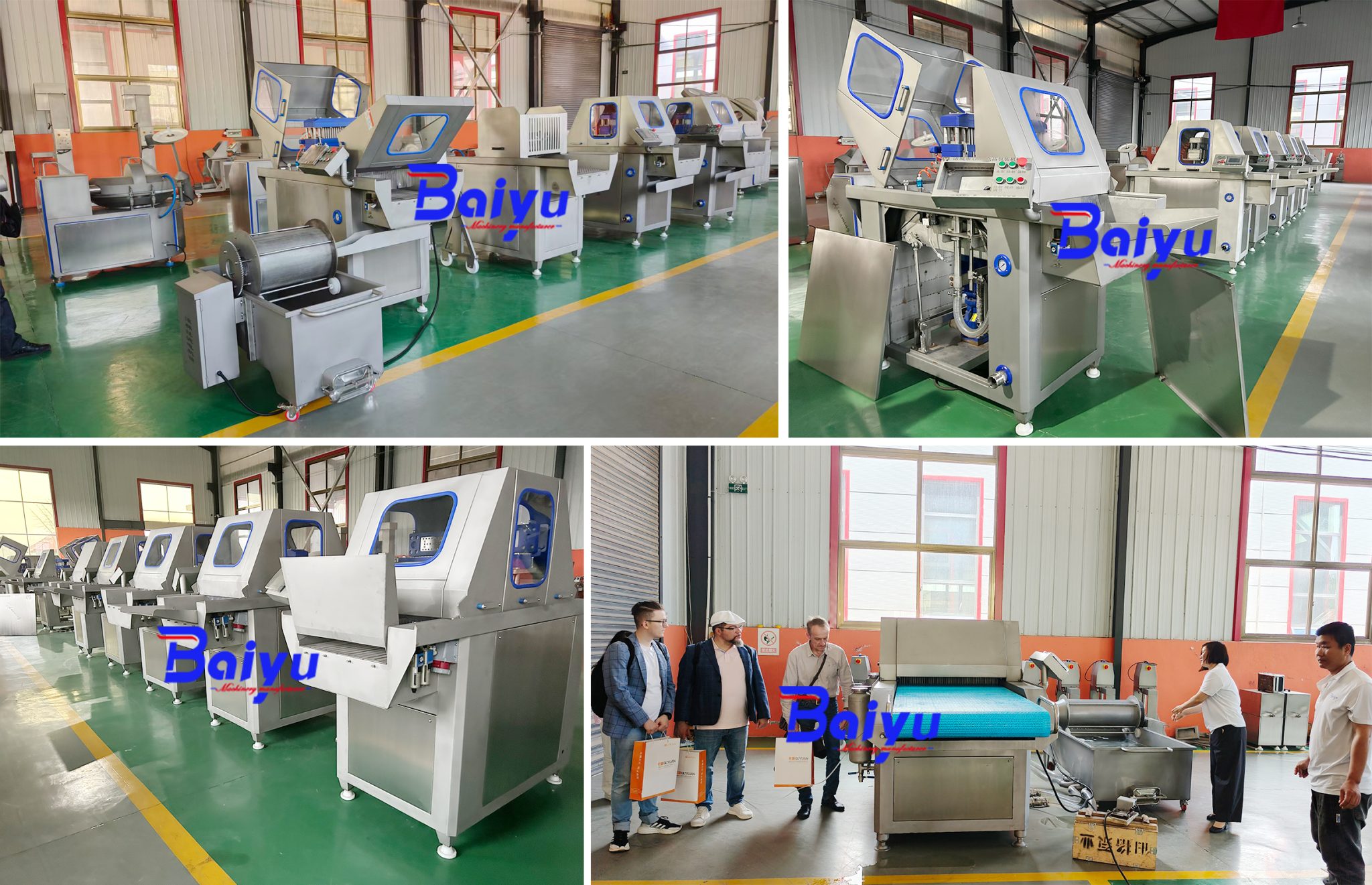

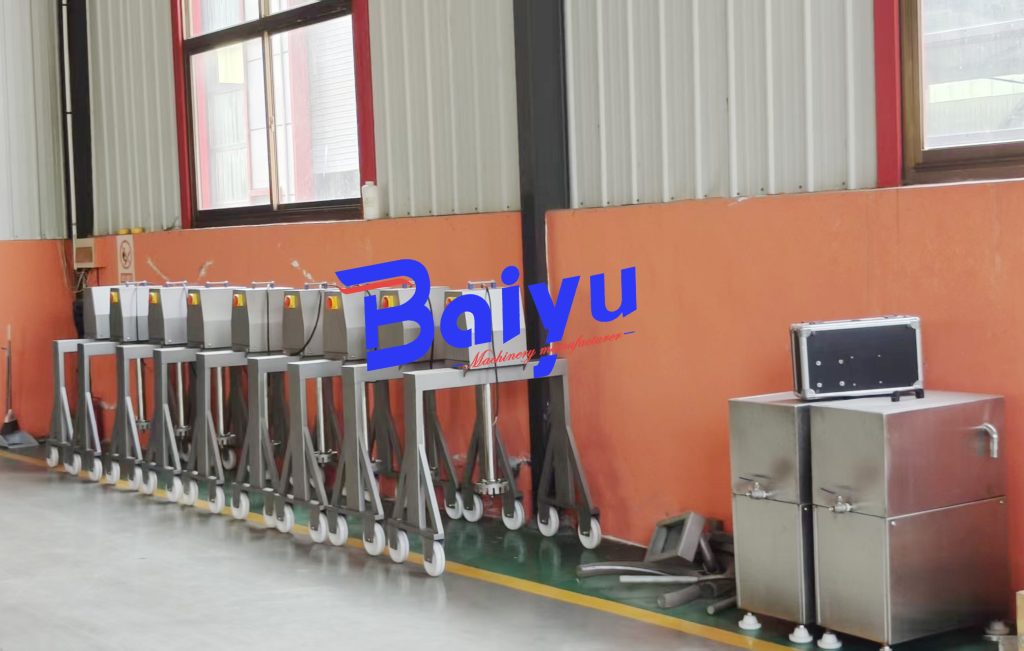

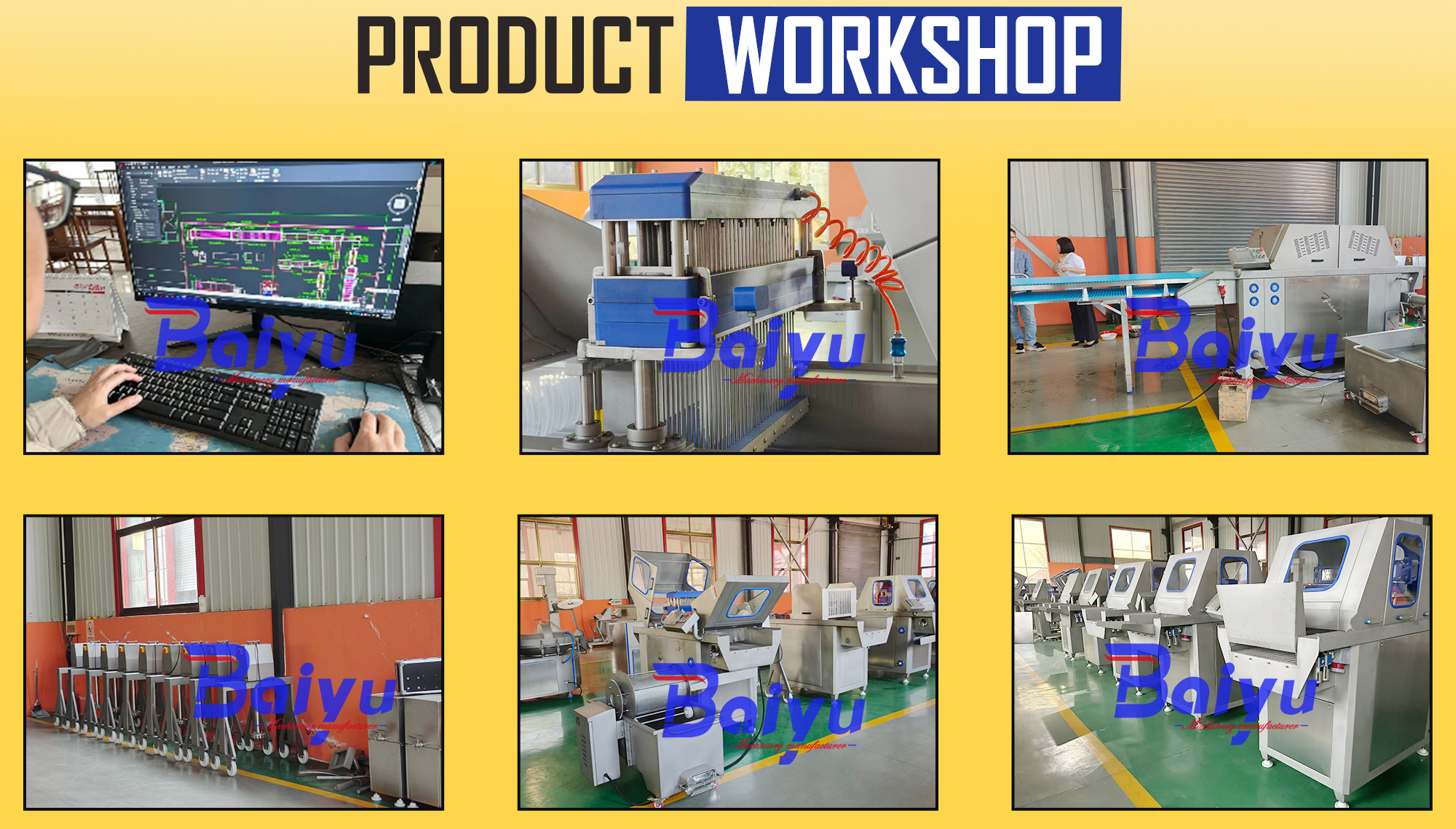

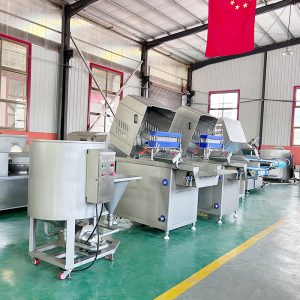

The Baiyu Brine Injection Machine follows a rigorous manufacturing process to ensure quality and hygiene standards. The process begins with engineer design, followed by the selection of raw materials such as SS304 plate and tube. These materials are then programmed and cut using CNC and laser cutting technology. The machine is welded by skilled workers according to technical drawings, and then assembled. The brine injection machine undergoes polishing and sandblasting to ensure it meets international food machinery hygiene requirements. Finally, the machine is tested and cleaned before shipment to ensure optimal performance and customer satisfaction.
Advantages
Baiyu is a leading manufacturer with over 30+ years of experience specializing in brine injection machines. We offer a comprehensive one-stop solution for food processing equipment needs. Our brine injection machines are designed to enhance the quality and taste of meat products, delivering consistent flavor, texture, and moisture content. We welcome clients to visit our factory and experience our expertise in food processing equipment manufacturing.
Application

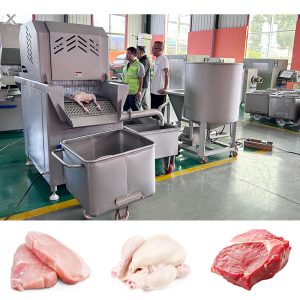

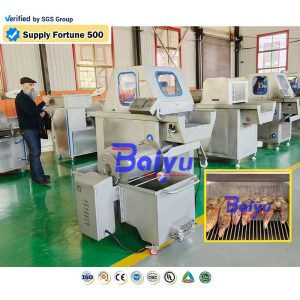

Beef (steaks, cubes, strips, brisket);Pork (ham, bacon, ribs, loin);Lamb (whole cuts, slices, skewers)

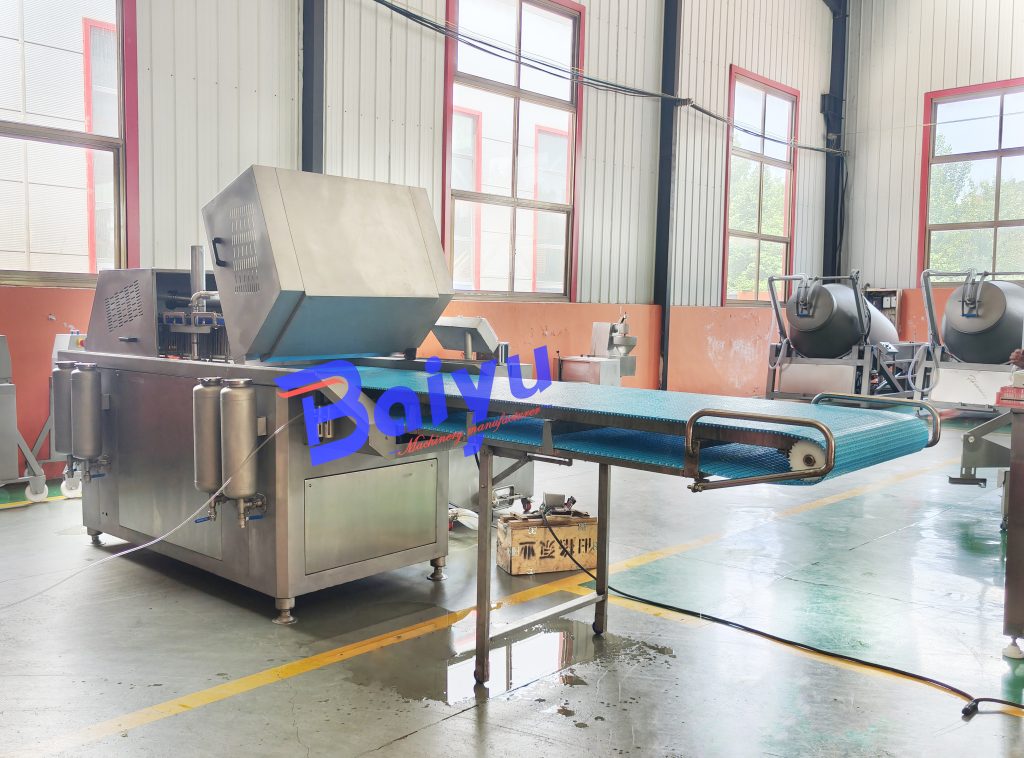

Seafood Products

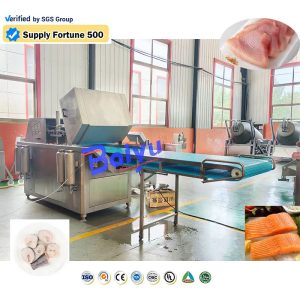

Fish fillets (salmon, cod, tilapia, haddock);Whole fish (medium and large size);Shrimp and prawn products
Frozen seafood blocks
Ham and sausages raw material;Marinated BBQ meat;Ready-to-cook meat products;Pre-seasoned frozen foods
Chicken nuggets and strips;Seasoned fried meat products;Central kitchen prepared meals;Convenience food products
Meat Processing Industry
Central Kitchen & Food Service Industry
Frozen Food Industry
Seafood Processing Industry
Ready-to-Eat Food Industry
FAQ
1. What products can be processed by the brine injector machine?
The brine injector machine is widely used for meat and seafood processing, including chicken breast, chicken legs, chicken wings, pork, beef, ham, bacon, fish fillets, shrimp, squid, and other marinated products.
2. How does the machine ensure uniform brine injection and improve product quality?
The machine adopts a multi-needle injection system with precise pressure control to ensure even brine distribution. It improves flavor absorption, tenderness, juiciness, and water retention while maintaining the original product structure.
3. Will the injection needles get blocked? How is the cleaning process?
The machine is equipped with an anti-blocking needle system and automatic needle cleaning function. The needles can be quickly cleaned and maintained, ensuring stable operation, high hygiene standards, and reduced downtime.
4. Can the injection parameters be adjusted for different products?
Yes. The injection pressure, conveyor speed, and injection rate can be adjusted according to different product sizes, thicknesses, and processing requirements, providing flexible solutions for various applications.
5. What are the material, capacity, and production advantages of the machine?
Made of food-grade SUS304 stainless steel, the machine features high durability, easy cleaning, and reliable performance. Different models are available to meet various production capacities, from small workshops to large industrial processing plants.
6. Can the brine injector machine be integrated into a complete production line?
Yes. The machine can be connected with vacuum tumblers, meat slicers, tenderizers, conveyors, and packaging machines to create an efficient automatic meat processing solution.
7.Can i get the spare part ?
Yes ,Baiyu Support the spare part for you within 2 year by free ,
8.If i have others product wanted to shipment with you ,if it is ok
Yes ,we are have bigger space in factory ,we can help you shipment all the product together without other charges, Because Exceptional service is what Baiyu has always pursued.
9.Can motors and electrical components be customized with different brands?
Yes, but the brand we’ve used for over 20 years and the precision and compatibility of our machines are excellent. If you want to specify a brand, that’s fine too.
10.if machine have problem ,can i return back to you
If my machine not made good ,surely you can return back to me ,we can do return service ,because have this policy ,so we make machine machine very well ,So if you need high quality machine ,please contract Selina (Baiyu)
